• LED LINEAR BATTENS AND PROFILES

SLIMLINE SEAMLESS TC LINKABLE SL9706 - 4/22W

TC SEAMLESS SLIMLINE

Application

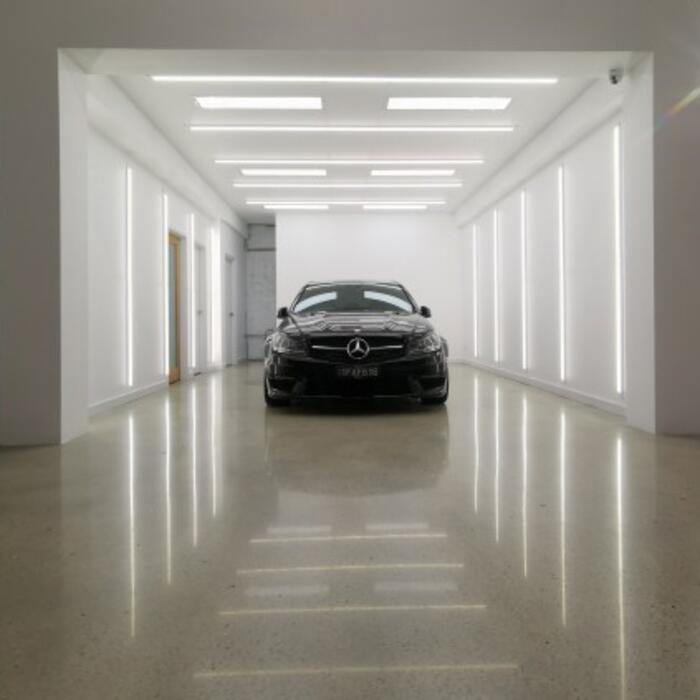

Great for commercial shop spaces, home pantries, walk-in wardrobes

Design Specifications

  • Selectable colour temperature 3000K, 4000K, 5500K, beam distribution 105 degree, CRI > 80

  • Polycarbonate body profile and opal diffuser

  • Integral constant current non-dimmable driver

  • Individual switch control, plug and play flex and plug included

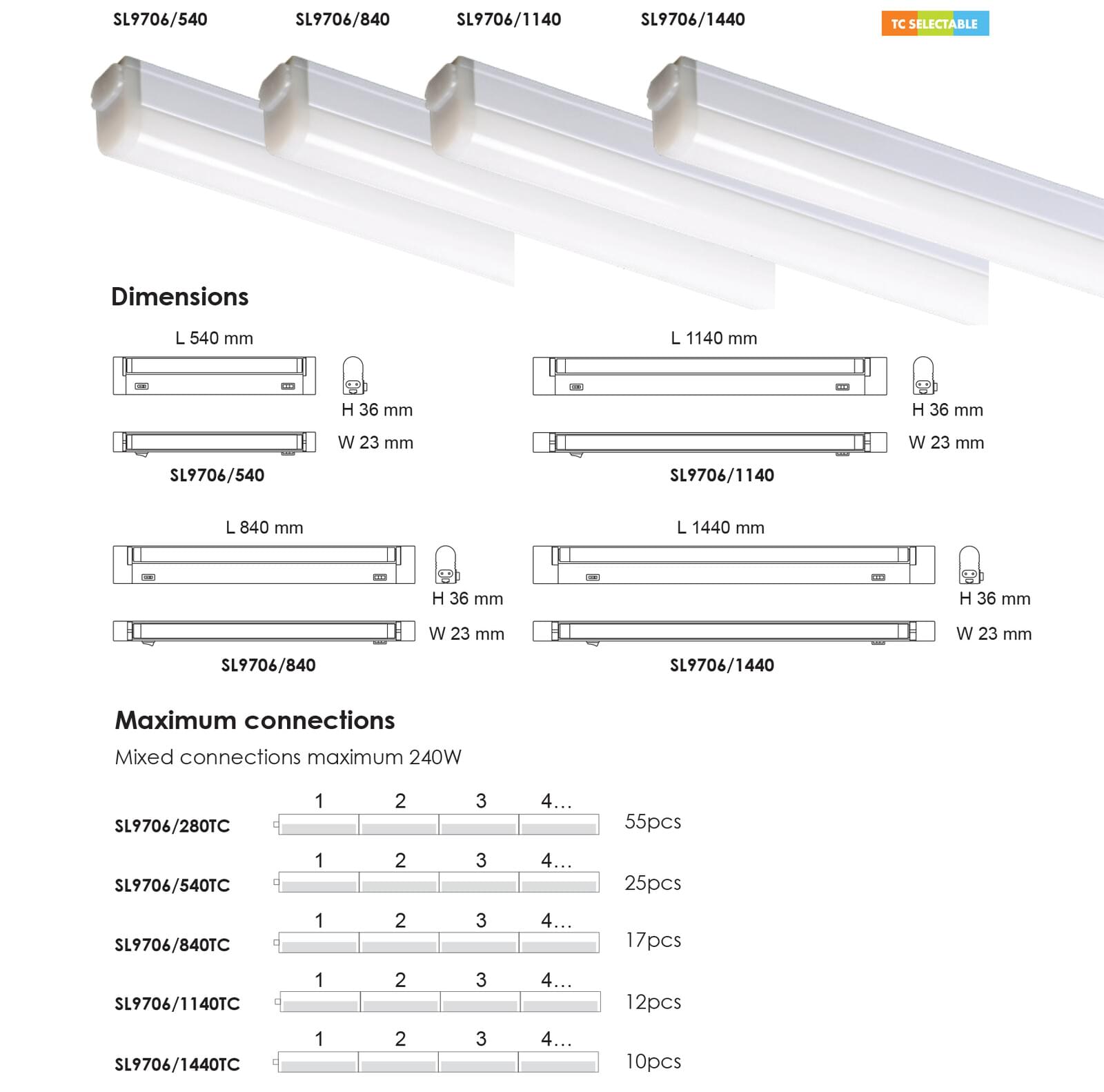

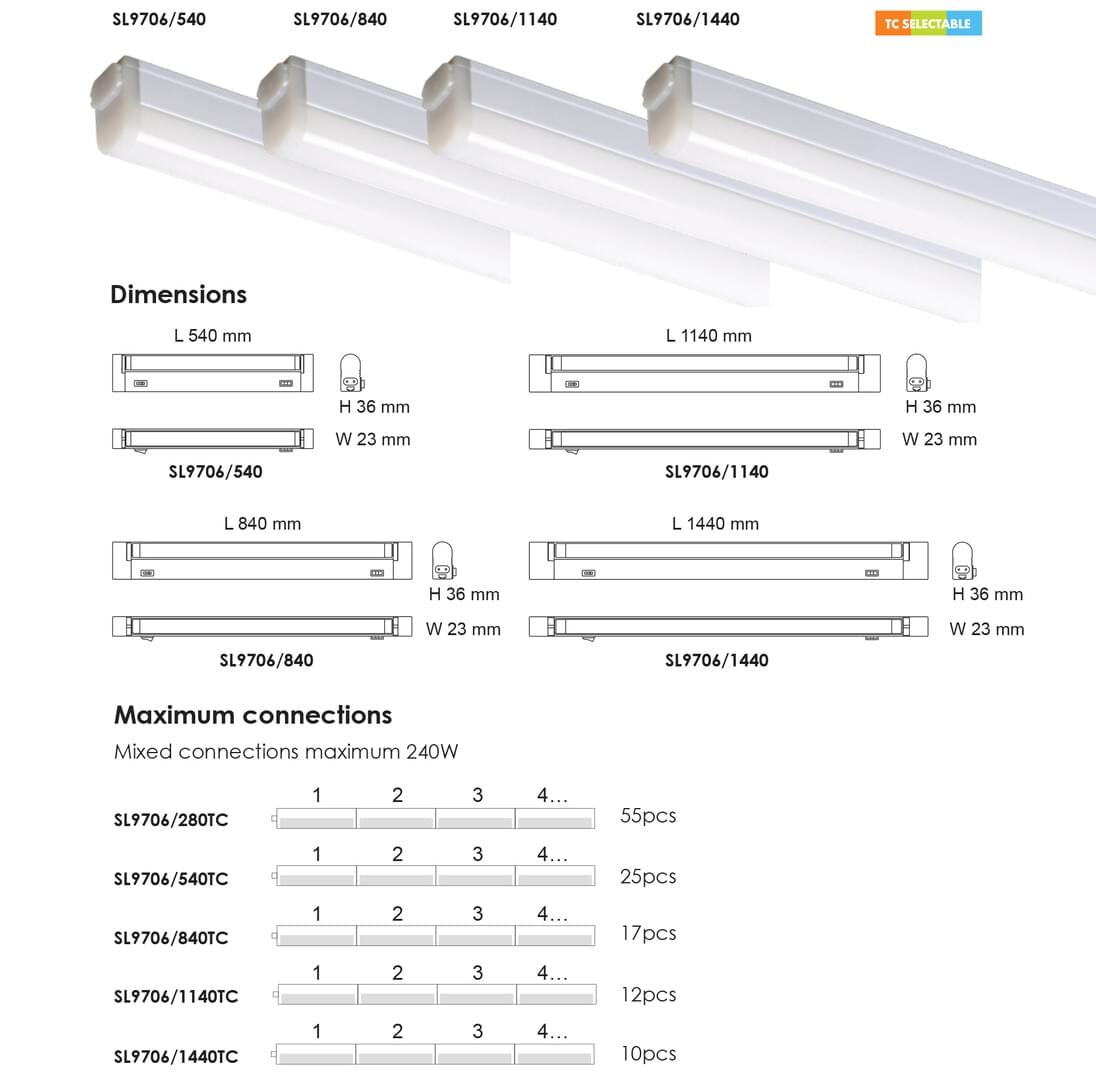

  • Maximum connections: 280TC 55, 540TC 25, 840TC 17, 1140TC 12, 1440TC 10 UNITS

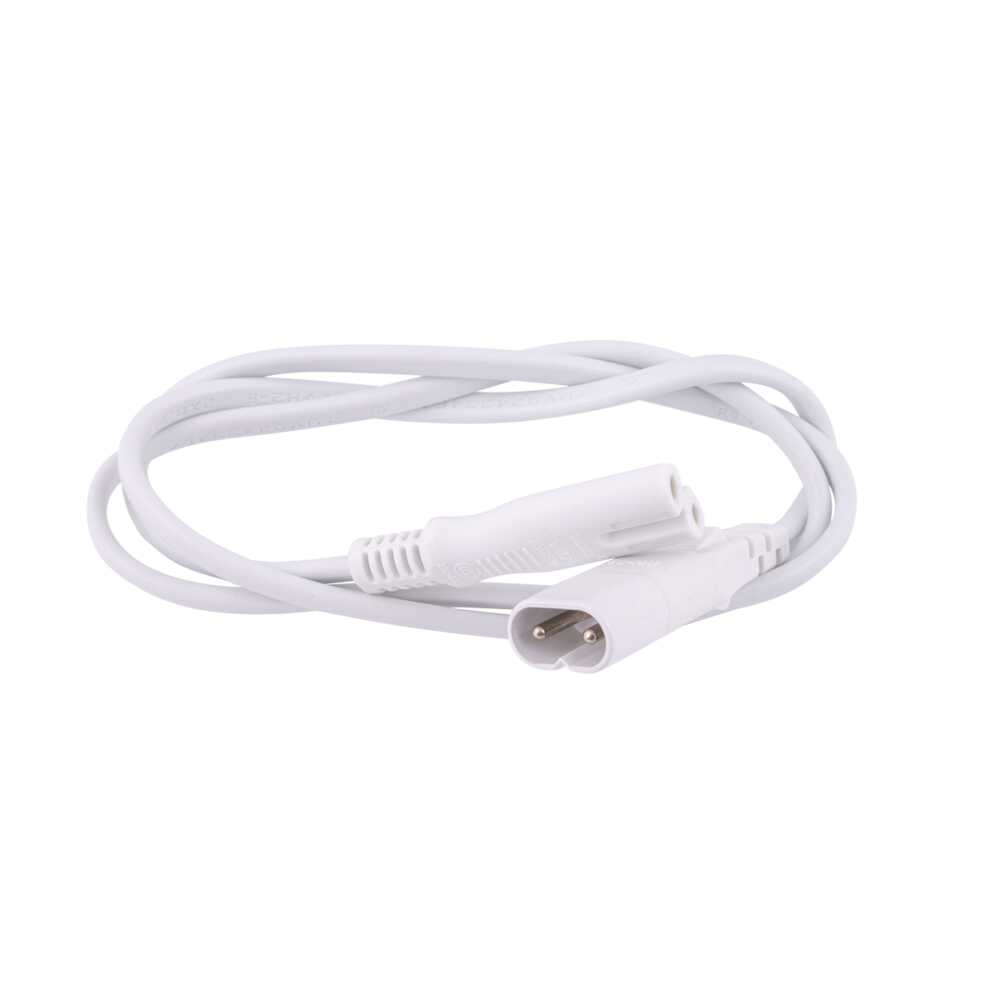

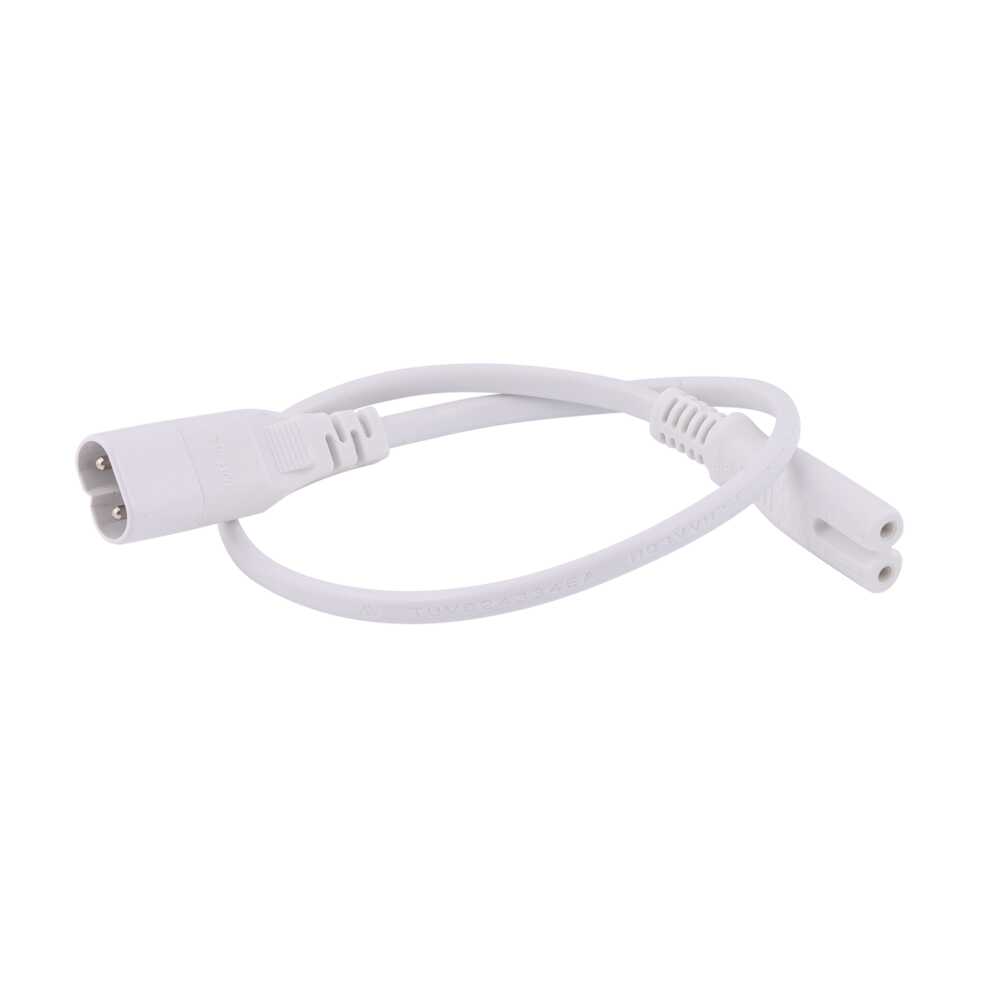

  • Accessories: SL9706/32CM LINK (L 320mm) SL9706/76CM LINK (L 760 mm)

SLIMLINE SEAMLESS TC LINKABLE SL9706
SLIMLINE SEAMLESS TC LINKABLE SL9706
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5500K
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5500K

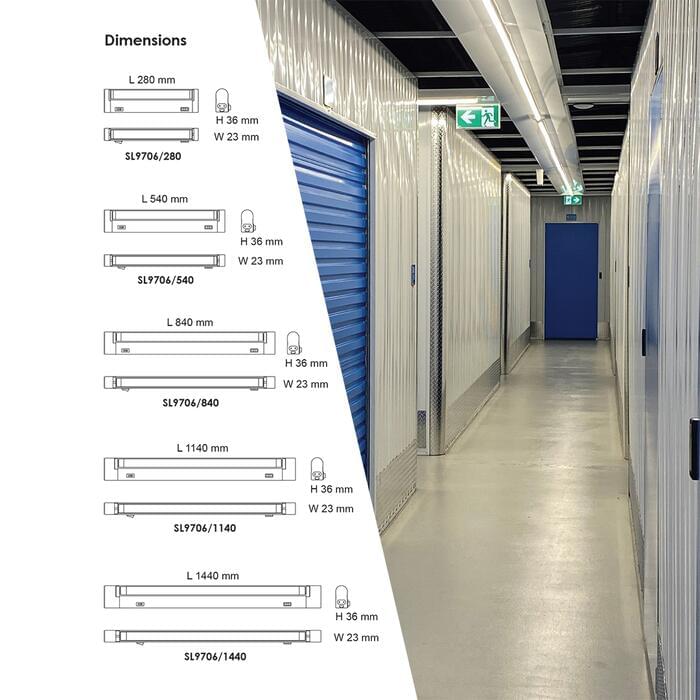

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ
  • Downloads
  • Technical Specifications
    Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

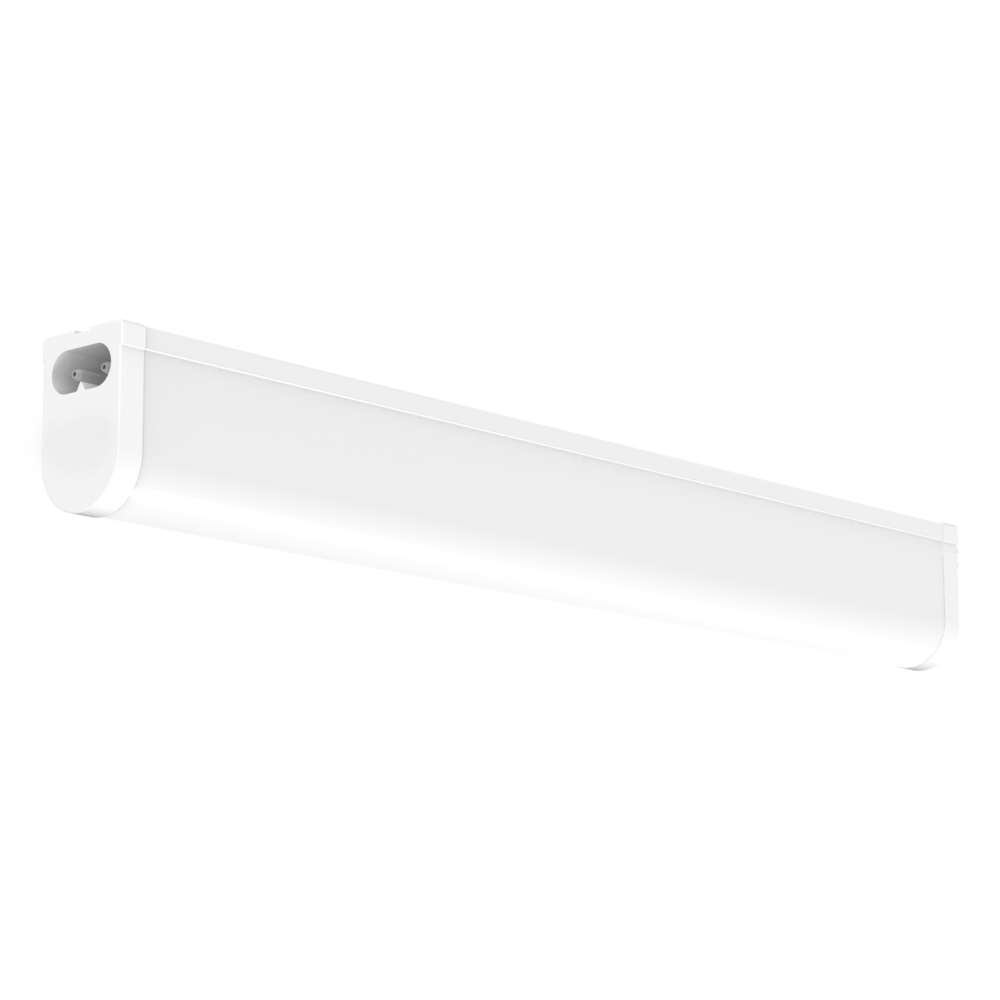

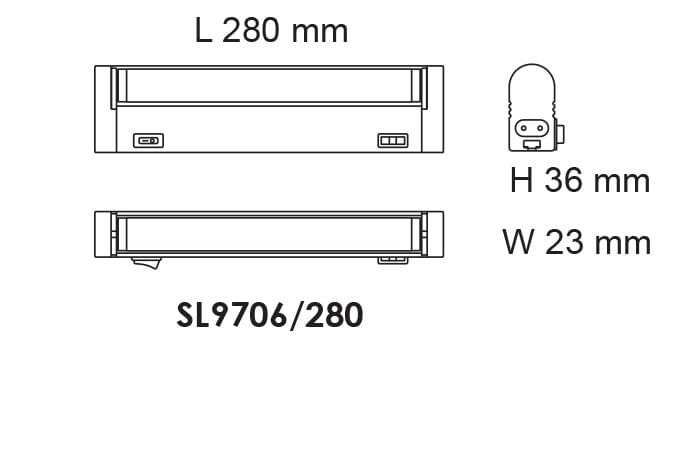

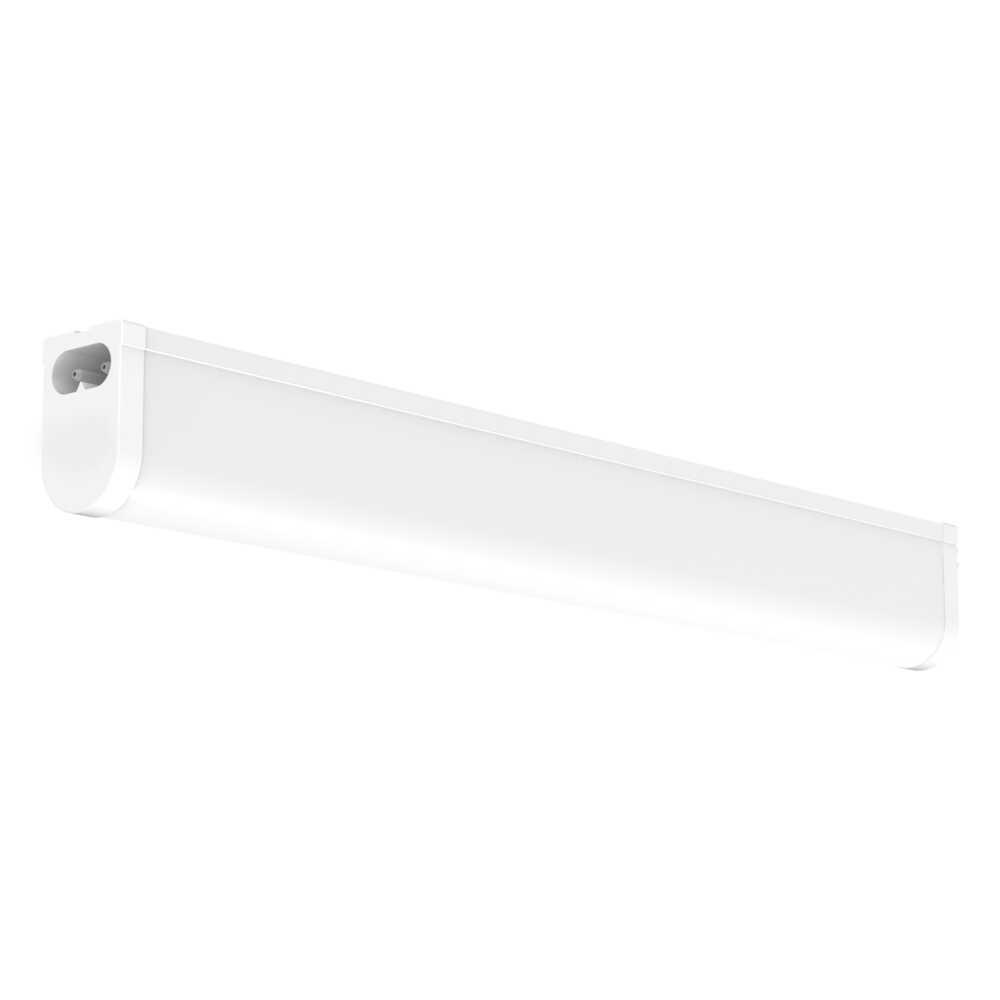

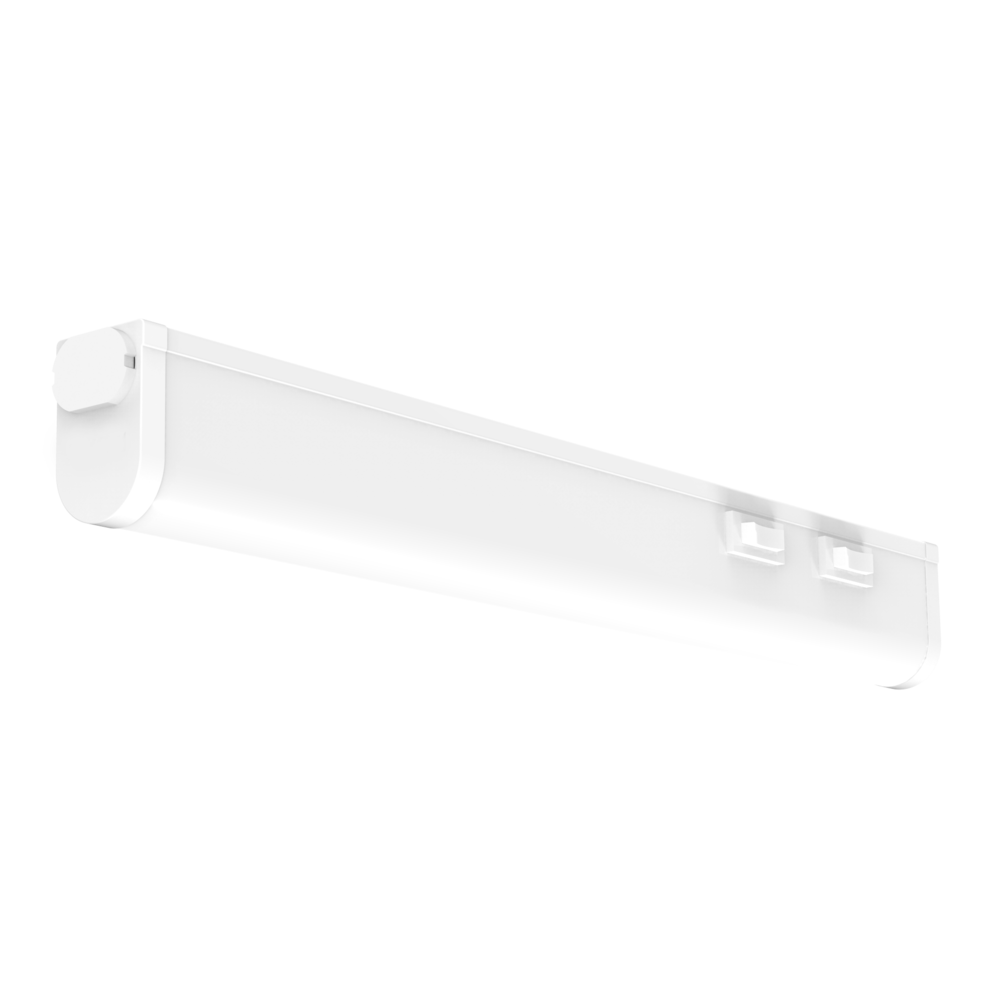

    Model No.SL9706/280TC Input Voltage240 Power4 Lumens300/380/300 CCT3000/4000/5500 CRI80 Beam Angle105 Dim280(L) x 23(W) x 36(H) Body ColourWHITE Add to Enquiry Add Remove Remove

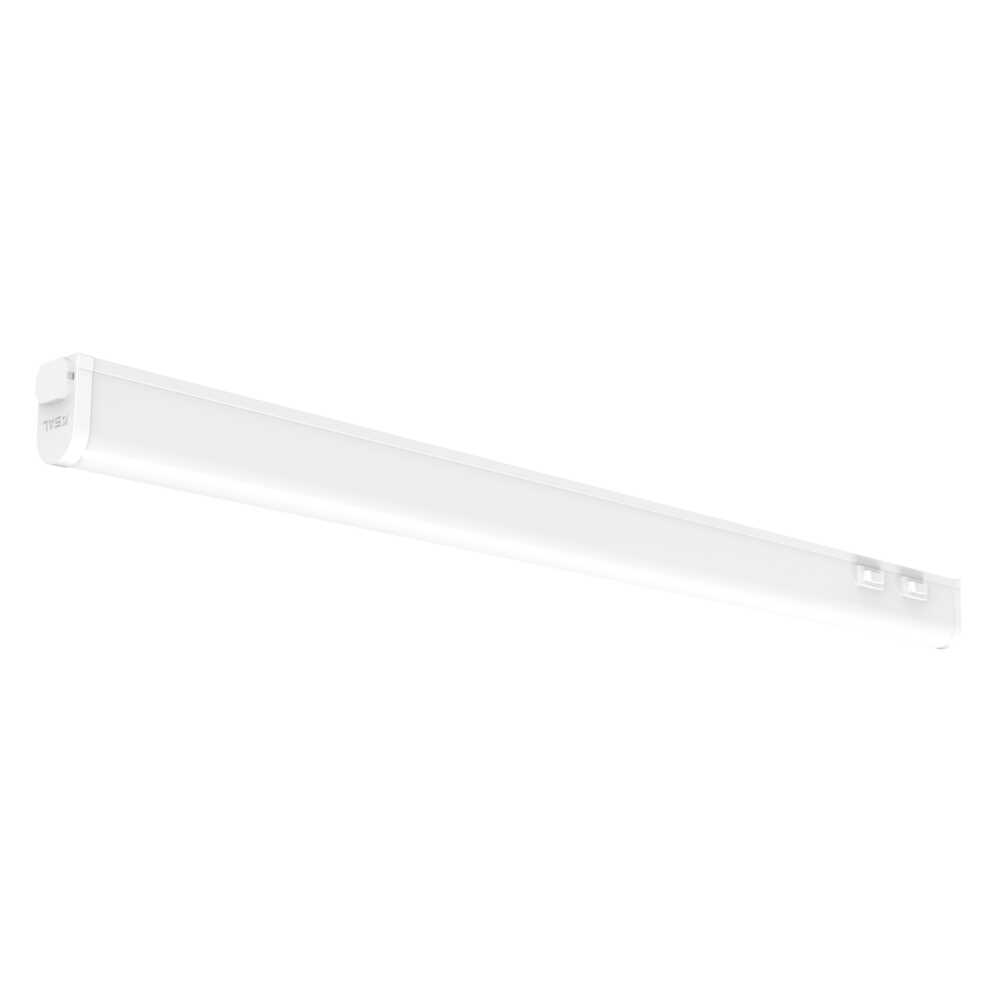

    Model No.SL9706/540TC Input Voltage240 Power9 Lumens750/800/750 CCT3000/4000/5500 CRI80 Beam Angle105 Dim540(L) x 23(W) x 36(H) Body ColourWHITE Add to Enquiry Add Remove Remove

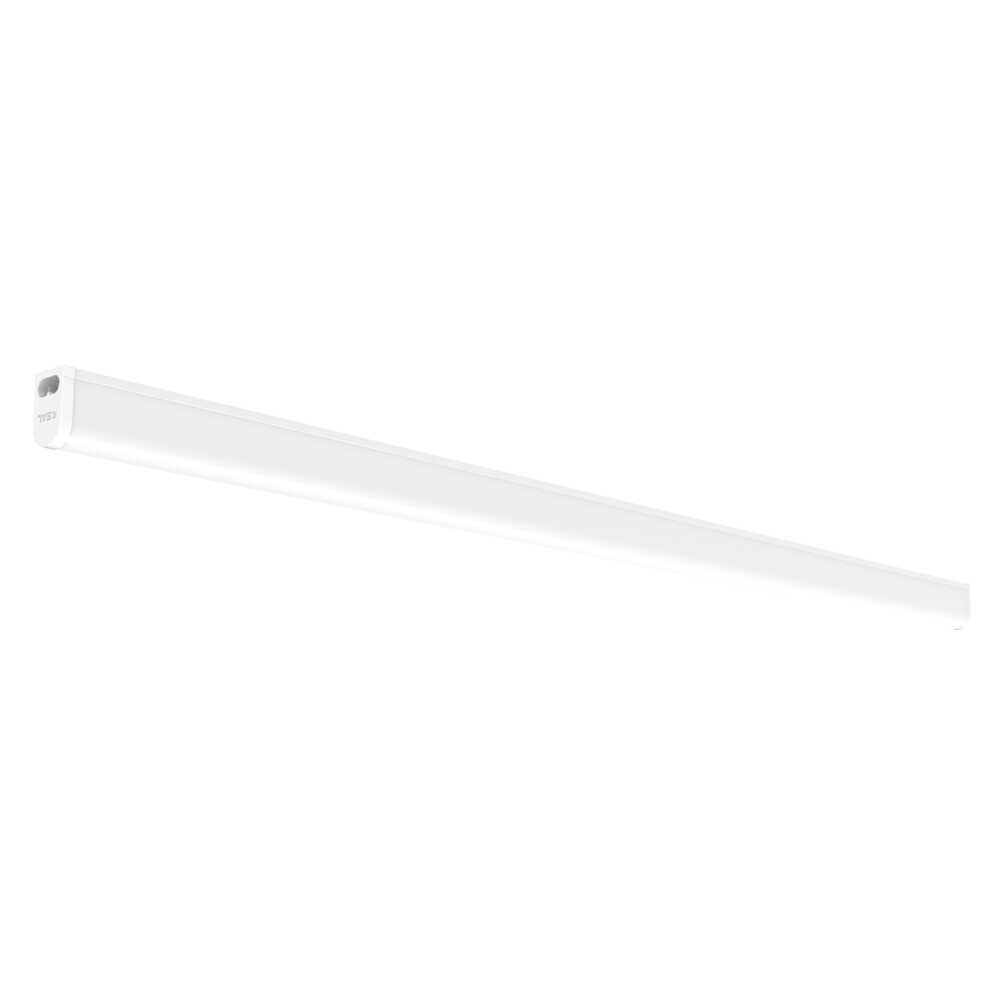

    Model No.SL9706/840TC Input Voltage240 Power13 Lumens1050/1200/1050 CCT3000/4000/5500 CRI80 Beam Angle105 Dim840(L) x 23(W) x 36(H) Body ColourWHITE Add to Enquiry Add Remove Remove

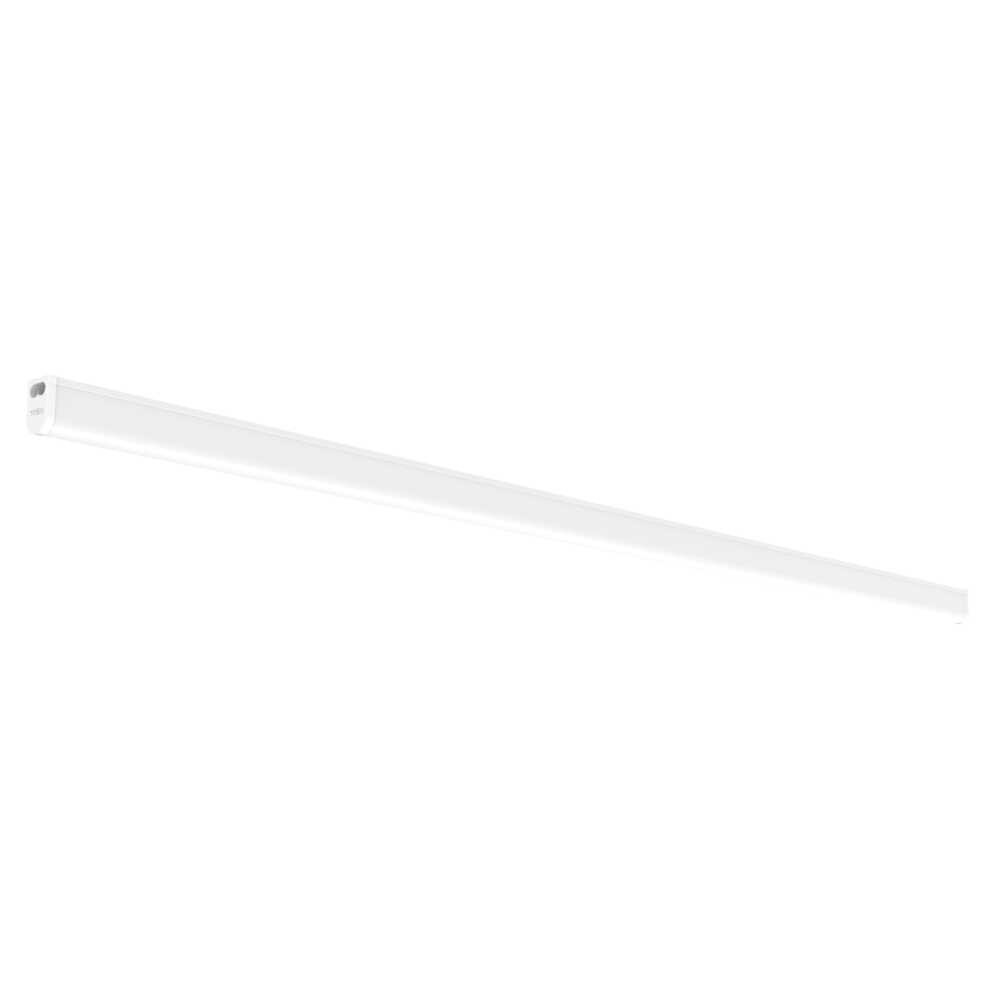

    Model No.SL9706/1140TC Input Voltage240 Power18 Lumens1550/1600/1600 CCT3000/4000/5500 CRI80 Beam Angle105 Dim1140(L) x 23(W) x 36(H) Body ColourWHITE Add to Enquiry Add Remove Remove

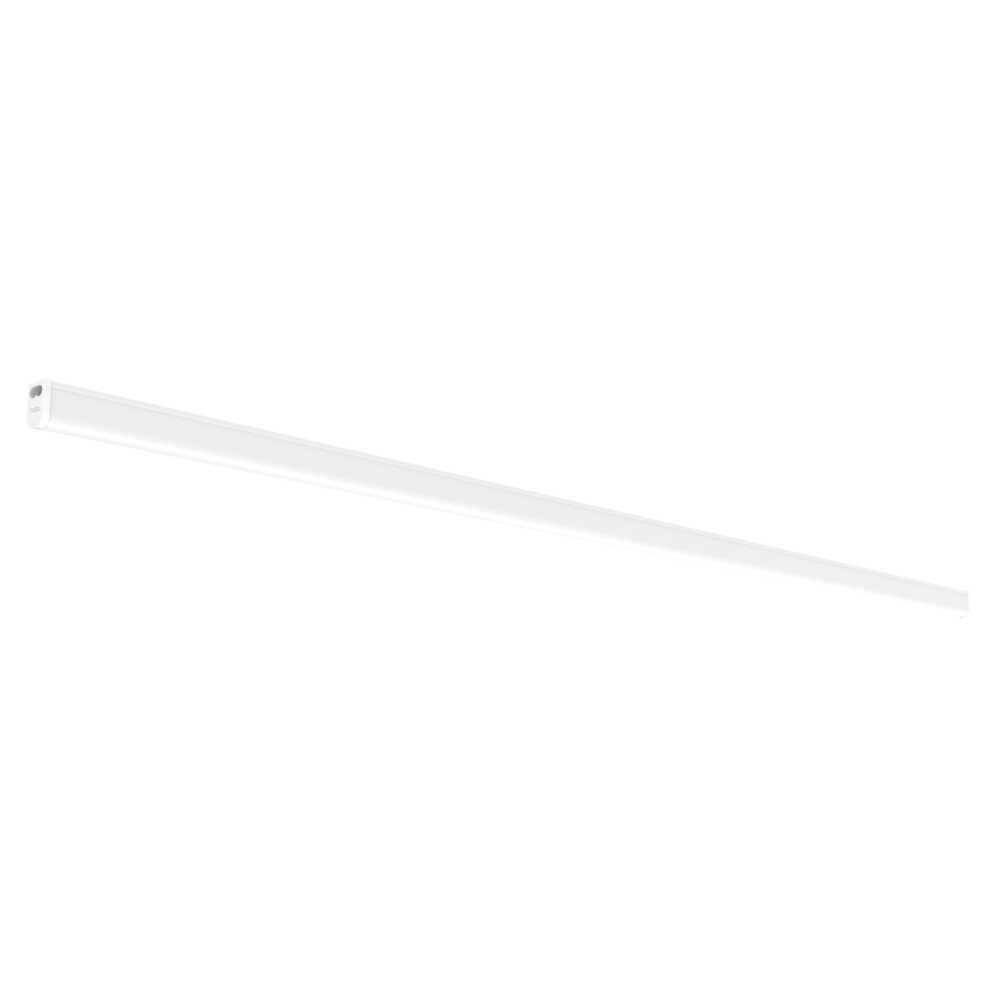

    Model No.SL9706/1440TC Input Voltage240 Power22 Lumens1800/2000/1800 CCT3000/4000/5500 CRI80 Beam Angle105 Dim1440(L) x 23(W) x 36(H) Body ColourWHITE Add to Enquiry Add Remove Remove

    IMPORTANT, where CCT selection switching is provided, it is important to switch OFF the SUPPLY before the CCT selection is made, otherwise equipment damage may occur.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
